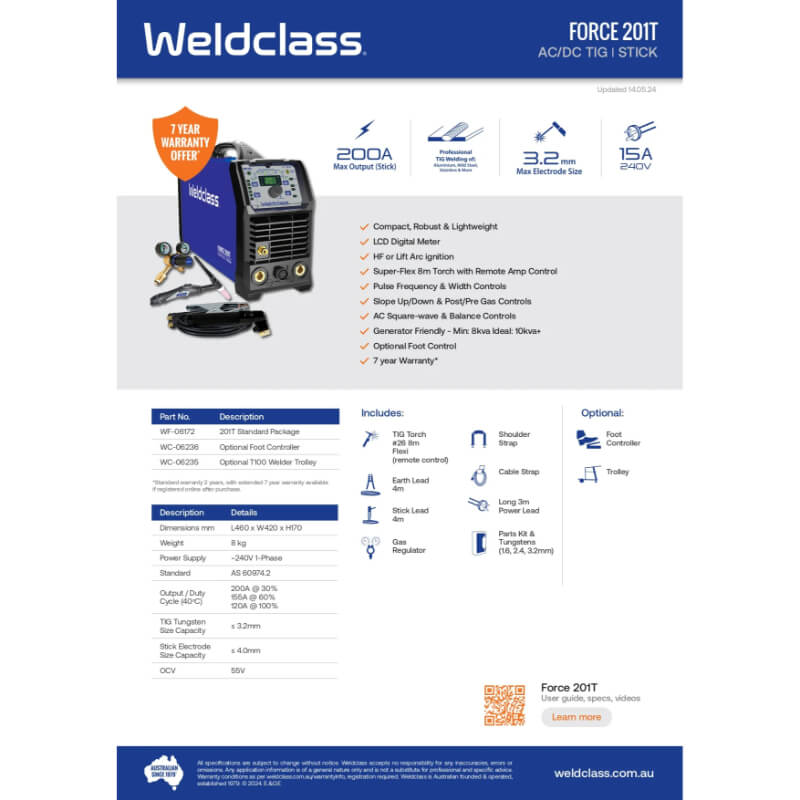

Weldclass Force 201T welding machine advertisement with product details and features.
Weldclass welding machine with accessories on a white background
Weldclass Force 201T welding machine advertisement with product details and features.

TIG Welder - FORCE 201T AC/DC Pulse WF-06172

$1,655.00 - $1,655.00
$1,655.00
$1,655.00 - $1,655.00
$1,655.00
Description

TIG Welder - FORCE 201T AC/DC Pulse WF-06172

⚡ Now Available with a Market-Leading 7-Year Warranty! ⚡

Experience professional-grade TIG performance with the Weldclass FORCE 201T AC/DC Pulse TIG Welder, engineered for precision welding of Aluminium, Steel, Stainless Steel, Copper, and more. Compact yet powerful, this 8kg portable inverter delivers 200A @ 30% duty cycle (AC TIG), making it ideal for workshop or on-site fabrication.

With advanced pulse frequency and balance control, HF or Lift Arc ignition, and LCD digital settings, you can fine-tune every weld for unmatched accuracy and finish. Backed by Weldclass’ 7-year warranty, this machine delivers top reliability and professional results in one lightweight package.

KEY FEATURES

  • Market-Leading 7-Year Warranty*

  • 200A max output (AC) @ 30% duty cycle

  • Professional AC/DC TIG for Aluminium, Steel, Stainless & more

  • HF or Lift Arc ignition for precision start

  • Pulse Frequency Adjustable: 0.2 – 200Hz

  • AC Balance Adjustment (-5 to +5) for max cleaning or penetration

  • Slope Up/Down, Pre/Post Gas & Pulse Width adjustment

  • LCD Digital Controls for easy parameter setup

  • Compact & Lightweight — only 8kg

  • Generator Compatible — min 8kVA, ideal 10kVA+

  • IP23 Protection — superior resistance to dust & moisture

  • Optional Foot Control (WC-06236) for hands-free amperage control

  • Stressed-tested to 440V for reliability & durability

⚙️ FUNCTIONS

  • TIG (AC/DC)

  • Stick / MMA

TIG Functions Include:

  • HF or Lift Arc Ignition

  • Pulse Frequency & Width Adjustment

  • Slope Up/Down (0–10s)

  • Pre-Gas (0–2s) / Post-Gas (0–10s)

  • AC Frequency: 50Hz

  • AC Balance: -5 (25% Penetration) to +5 (50% Cleaning)

SPECIFICATIONS

Specification Details
Model FORCE 201T AC/DC Pulse (WF-06172)
Max Output 200A @ 30% (AC TIG)
Welding Type TIG (AC/DC), Stick/MMA
Weight 8kg
Ignition Type HF or Lift Arc
AC Frequency 50Hz
AC Balance -5 to +5
Input Voltage 240V (15A Plug Fitted)
Generator Compatible Min 8kVA, Ideal 10kVA+
IP Rating IP23
Warranty 7 Years* (2-Year Standard + 5-Year Extended via Registration)
Made For Aluminium, Stainless Steel, Steel, Copper & more

INCLUDES

  • TIG Torch #26 Flexi 8m (with Remote Control)

  • Earth Lead 4m

  • Stick Lead 4m

  • Gas Regulator

  • Shoulder Strap & Cable Strap

  • Long Power Input Lead (3m)

  • Parts Kit & Tungstens (1.6, 2.4, 3.2mm)

Perfect For:
Professionals, fabricators, and serious hobbyists needing high-precision AC/DC TIG welding for aluminium and stainless projects — all in a compact 8kg design backed by a 7-year warranty.
