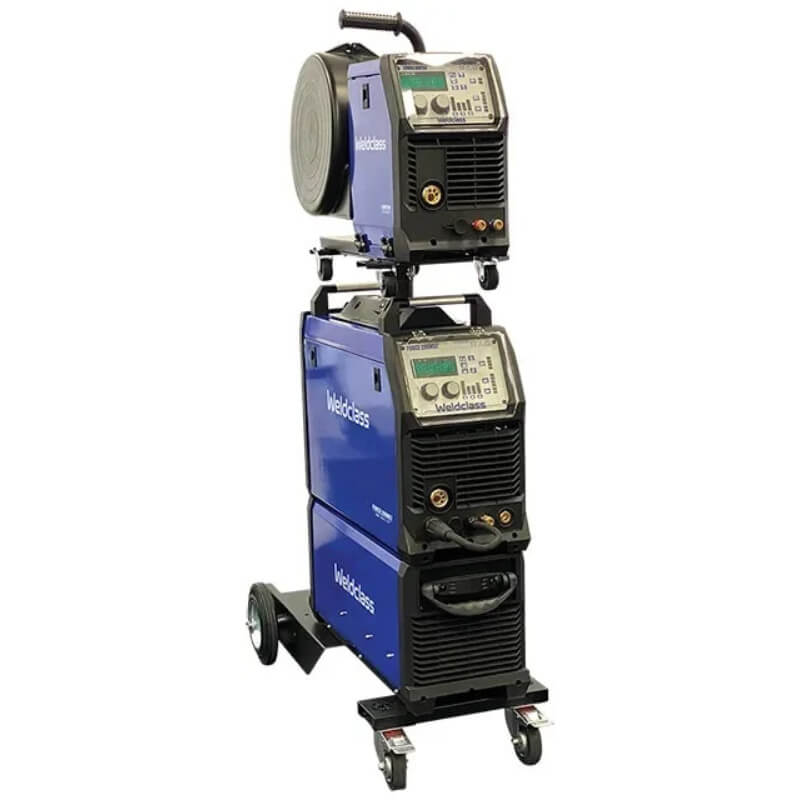

Welding machine on a white background

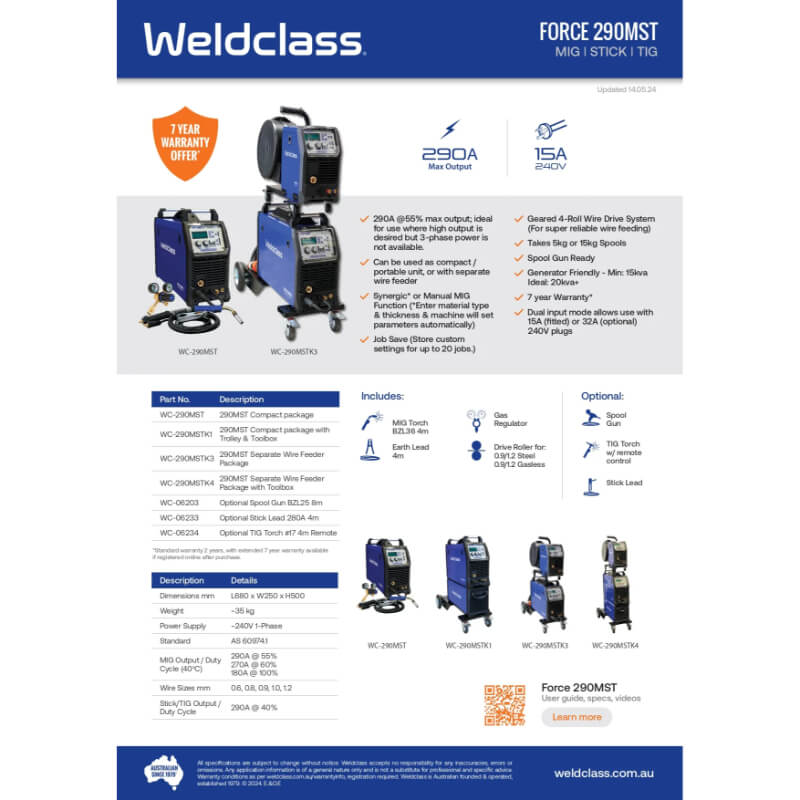

Weldclass Force 290MST welding machine advertisement with specifications and features.
Welding machine on a white background
Weldclass Force 290MST welding machine advertisement with specifications and features.

FORCE 290MST with SWF114 Wire Feeder, 8m Interconnecting Cables & Toolbox

$4,390.00 - $4,390.00
$4,390.00
$4,390.00 - $4,390.00
$4,390.00
Description

FORCE 290MST with SWF114 Wire Feeder, 8m Interconnecting Cables & Toolbox

🌟 Now Available with Industry-First 7-Year Warranty! 🌟

The Weldclass FORCE 290MST delivers unbeatable power from single-phase supply, ideal where 3-phase power is unavailable. With a maximum output of 290A @ 55% duty cycle, it handles production-level jobs with wires up to 1.2mm.

This package includes the SWF114 separate wire feeder, 8m interconnecting cables, and toolbox trolley, making it a complete welding solution. Features include easy-to-use synergic or manual controls, 4-roll geared drive system, Job Save function, Spool Gun compatibility, and more — perfect for professional workshops, trade, or on-site applications.

Also known as Weldforce 290MST

PACKAGE DESCRIPTION

FORCE 290MST Separate Wire Feeder Package #4 includes:

  • Compact FORCE 290MST unit

  • SWF114 Wire Feeder

  • 8m Interconnecting Cables

  • Toolbox Trolley

FUNCTIONS

  • MIG (Gas / Gasless)

  • Stick / MMA

  • TIG (DC Lift-Arc)

KEY FEATURES

  • Industry-first 7-year warranty*

  • Dual-Purpose Power Source Technology — use as stand-alone or with SWF114 wire feeder

  • Maximum MIG output 290A @ 55% duty cycle

  • Dual Input Modes — 240V 15A plug (fitted) or 240V 32A plug (optional)**

  • Manual or Synergic MIG controls — automatic settings by material type & thickness

  • Job Save — store up to 20 custom programs

  • Geared 4-Roll Wire Drive System — for reliable wire feeding

  • Takes 5kg (D200mm) or 15kg (D300mm) spools

  • Spool Gun Ready

  • Generator Compatible — min 15kVA, ideal 20+kVA

  • MIG Adjustments: Inductance, Soft Start, Burnback, Pre/Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time

  • Stick/MMA Adjustments: Hot-Start %, Arc-Force %

  • TIG Adjustments: Trigger & Remote Amperage Control, Post-Gas Time, Slope-Up Time

APPLICATION & CAPABILITY INFO

  • MIG Welding: <290A with solid mild steel (0.8–1.2mm), gasless flux-cored (0.8–1.2mm), flux-cored with gas (1.2mm), stainless-steel (0.8–1.2mm), aluminium (0.9–1.2mm), bronze/brazing (0.8–1.2mm) wires

  • Stick/MMA Welding: <270A with common electrodes (2.0–4.0mm), including steel, stainless-steel, hardfacing & more

  • TIG Welding: <290A DC Lift-Arc for steel, stainless, copper & chrome molly up to 5–6mm max thickness (NOT suitable for TIG aluminium)

INCLUDES

  • MIG Torch 4m BZL 36

  • Earth Lead 4m

  • Gas Regulator

  • Driver Rollers for 0.9/1.2mm steel/solid wires & 0.9/1.2mm flux-cored/gasless wires

  • Power Input Lead (4mm²) with heavy-duty 240V 15A plug fitted**

  • SWF114 Wire Feeder with 8m Interconnecting Cables

  • Toolbox Trolley

Compact, powerful, and complete with accessories, the FORCE 290MST Separate Wire Feeder Package is perfect for professional welders looking for portability, versatility, and industry-leading 7-year warranty.
